IC-7200 Quiet Relay Receive Scan Mod Member Supply Depot



Icom IC-7200 Service Manual Download PDF
Diagram

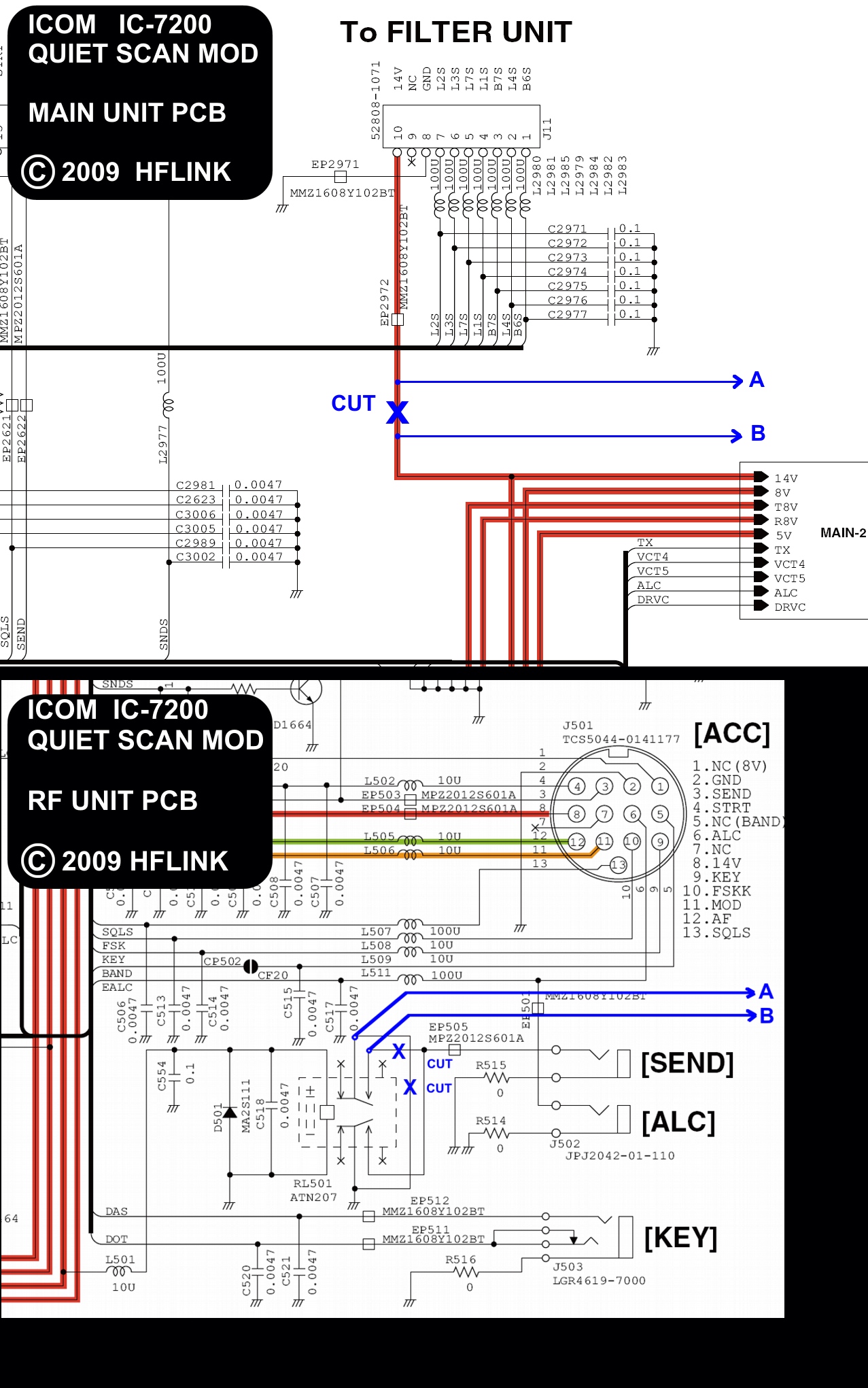

Icom IC-7200 QRRS MOD: CLICK TO ZOOM

ZOOM: IC-7200 Quiet Relay Receive Scan Modification


Click here for
Icom IC-7200 QRRS MOD
High Resolution Diagram Image (8MB jpg)

Suggested Parts:

1 Relay. 9v Coil, SPDT, 1A Contacts
( Omron, Relay, Part # G5V-1-DC9 )
Digi-Key Part Number Z2539-ND
Cost ~US$2.44 each

Misc. Small diameter insulated wire, such as wire-wrapping wire, for soldered connections between relay and PCB.

Misc. Double-sided Foam Tape for mounting the relay.

Suggested Tools:

Small diameter Solder
Small Soldering Iron
Tweezers
Needle Nose Pliers
Wire cutters
Magnifying Glass

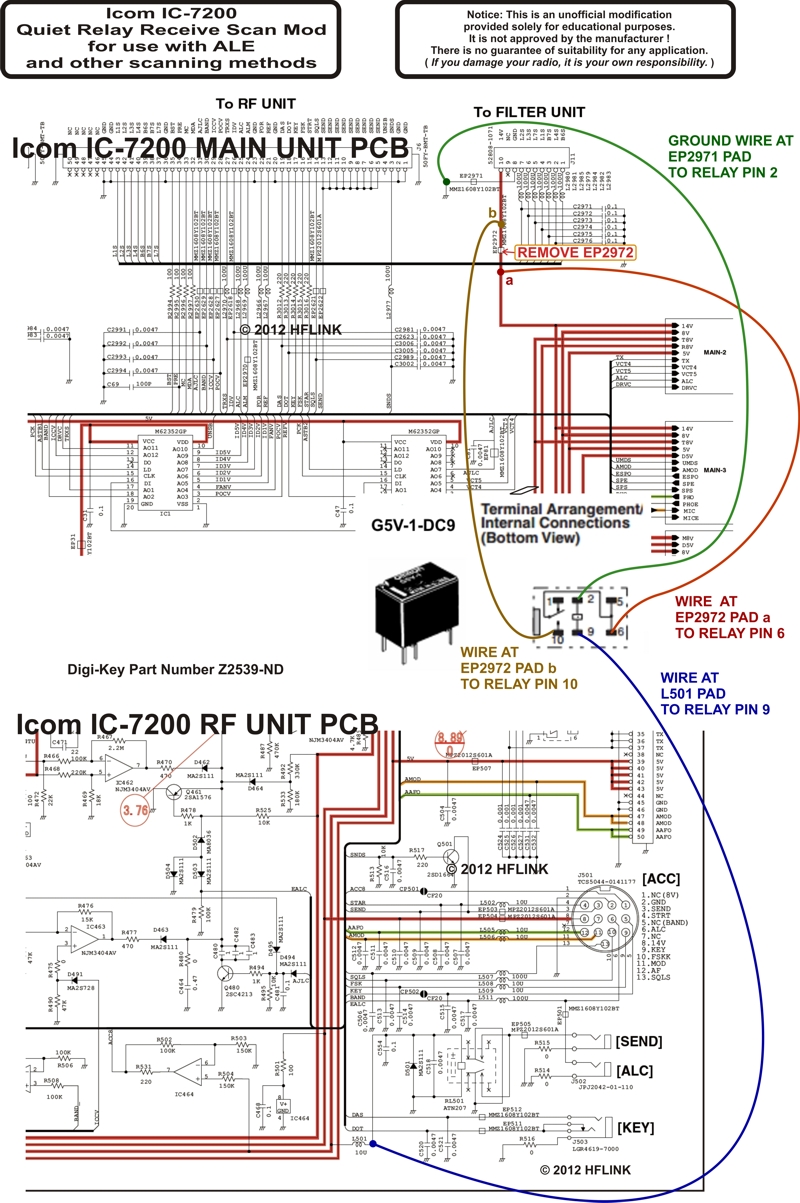

Schematic

Icom IC-7200 Quiet Relay Receive Scan Mod

Click here for
Icom IC-7200 QRRS MOD
High Resolution Schematic Image (8MB jpg)



HFLINK Home
HFLINK News
More HFLINK News
Join HFLINK Group - Free
Member Store
ALE COMM CENTRE
Automatic Link Establishment
Ham Radio ALE Operating
Ham Radio ALE HF Network
ALE Channel Frequencies
ALE Software & Download
ALE Transceiver Info
ALE Antenna Info
ALE Comm Standards
ALE Technical Info
Ham Radio Bandplans
HF Propagation Now
ALE Geo Position Report
ALE Interoperable HF Comm
Global Emcomm GAREC
JT65A Frequencies
Olivia Frequencies
ALE COMM CENTRE
HF Transceiver Calibration
ALE Ham Radio Nets
PCALE Quick Start Guide
ALE Presentations for clubs and organisations

HF Selcall CCIR 493-4 Australian Type

BACKGROUND
ALE was originally an expensive system for government services, but recent innovations in digital technology have brought the cost way down. The first organized amateur radio ALE nets began in 2001, corresponding with the release of the free PC-ALE software controller for ham radios. Several years of development by the 4000+ member HFLINK organization adapted ALE to be a ham-friendly, interference-free system. In 2007, the internet- connected HFN network went into full scale 24-hour service. HFN rapidly expanded to cover large areas of the earth, and it has become the prime framework for ham radio operations using the global standard ALE system. In keeping with its roots, ham radio ALE still maintains compatibility and interoperability with goverment ALE radios, many of which are also available now on the surplus market and being used by hams. Nearly every major HF SSB radio manufacturer in the world is now marketing an ALE radio.



High Frequency Network ALE CHANNEL ZERO
    HFN
High Frequency Network

The services currently provided by Global ALE HFN stations using Automatic Link Establishment, include: HF SMS Phone Texting, Text HF Email messaging, real-time-activity tracking, HF-to-HF Relay, Net Call ups, Net announcements, and individual station direct HF calling. Real-time reporting of who is on the air and able to communicate with each other, is tracked by the global network of stations through ALE COMM CENTRE on the web.

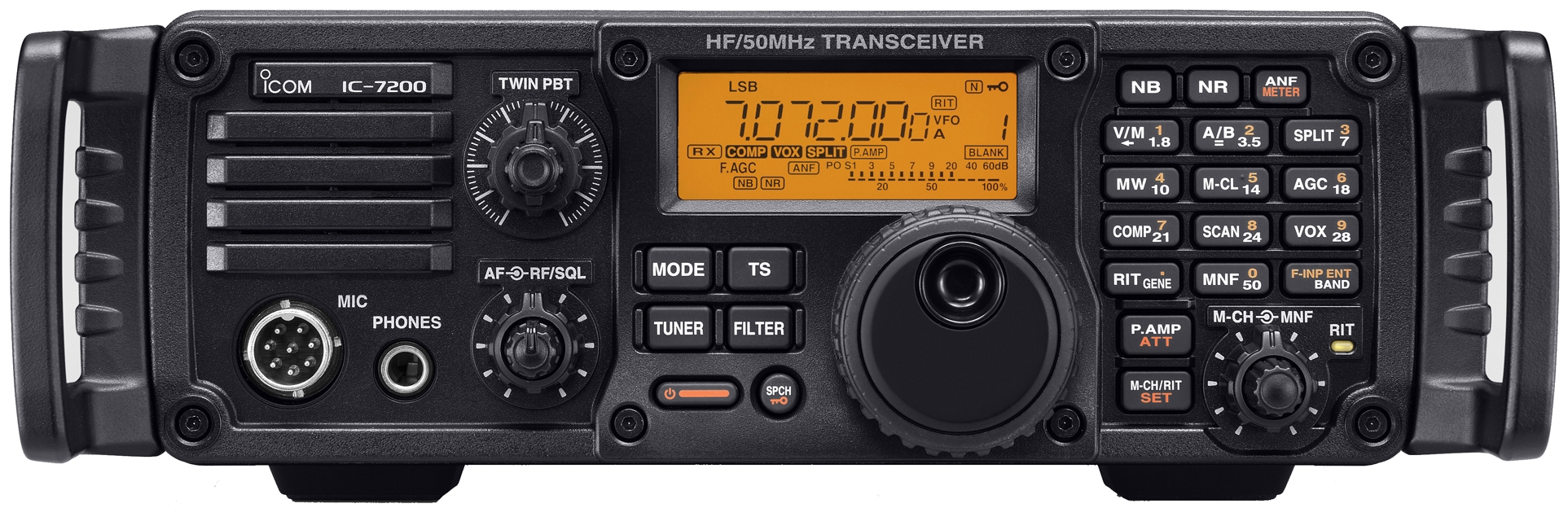

Icom IC-7200
